The "Yellow Light of Death" (YLoD) is a major hardware failure of the older models of the PlayStation 3 that is caused by overheating of the console 90% of the time.
I decided to fix my PS3 that had the YLoD as I had tried contacting Sony, and they wanted me to pay £128 for them to fix it as it was not under warranty. It would have been difficult to go to the retailer to get it repaired because I bought it off Amazon.
But before you carry out this repair, I suggest that you don't go to Sony unless you have a warranty. Instead, you should go to the retailer that sold you your PS3 and see if you can enforce the Sale of Goods Act 1979. Read
this for more details on how you can enforce the Sale of Goods Act.
For more information on the YLoD, use the following links:
http://www.guardian.co.uk/money/2006/mar/25/consumernews.howtocomplainhttp://kotaku.com/5361821/sony-pre+emptively-blasts-bbc-report-on-ps3-failureshttp://kotaku.com/5362381/bbc-examines-yellow-light-of-death-in-ukhttp://www.bbc.co.uk/blogs/watchdog/2009/09/playstation3_and_the_yellow_li.htmlhttp://www.gamesindustry.biz/articles/sony-tackles-bbc-over-ps3-failure-reportIf you still want to contact Sony, here are their
contact details. If you're going to ring them up, ring the following number instead as it will be much cheaper:
01923476426
I used a couple of videos on YouTube to help me repair my console from the YLoD. It's essential that you use these videos to help you repair your console.
Part 1Part 2This process involves heating up the CPU and GPU located on the motherboard so that the solder melts. This "resets" all the connections that involves the solder and so makes everything work again. Thermal compound needs to be applied to the CPU and GPU after this in order for it to dissipate heat better to the heat sink. Be aware that this is only a short term fix, and the same problem will likely arise again a few months down the line.
To repair you PS3 from the YLoD, you will need:
- Torx screwdriver T10
- Phillips screwdriver PH00
- Phillips screwdriver PH1
- Phillips screwdriver PH2
- Heat gun
- Thermal compound
- White Spirit
- Pen
- Paper
You can buy screwdriver sets that contain the contain all the screwdriver heads you need. I purchased a 30-in-1 precision screwdriver set for £7.99 from Maplin.
The heat gun should ideally reach a temperature of 400 degrees Celsius or 750 degrees Fahrenheit, but as long as your heat gun is able to reach a temperature that melts solder, you'll be fine. I bought my heat gun for £17.98 from B&Q (it was the cheapest heat gun I could find in-store). You cannot use a hairdryer as it does not get hot enough.
I bought the thermal compound from Maplin for £7.99, but you can get it cheaper from
Amazon.
I bought a bottle of white spirit for £1.48 from B&Q.
You may also need the following items when repairing your PS3:
- Compass - used to carefully remove small pieces of thermal compound from the motherboard.
- Pliers - used to remove screws that are difficult to remove from their slot after unscrewing.
- Compressed air - used to remove dust that has built up inside the PS3.
Once you've got all the equipment you need, watch the two videos that I posted above in full, so you have a good basic knowledge of what you will need to do to fix your PS3. Before I help you repair your console, I must state that I take no responsibility if your PS3 still does not work after repairing it.
In this guide, I will go through each part of the videos step by step so that you know what needs to be done when you carry out the repair. I recommend that you take pictures as you go along so that you can use them should you get confused when repairing your console.
To repair your console, rip off a piece of paper and assign it to a particular step of the process that requires you to remove something small (screws in most cases). When removing the larger pieces of the PS3, lay them out in order on something like a bed so that you know which order to put them back in. Each step below will have a reference to a particular part of the videos.
Here are a few diagrams that show you the screw sizes and locations for steps that involve taking out many screws The circles numbers represent the relevant steps in this guide:
Repairing the PS3:

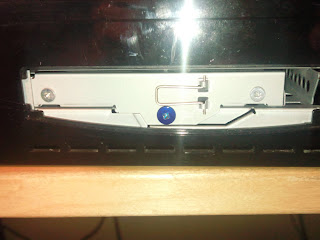

1. Remove the hard drive by removing a blue screw (2:02).
2. Remove warranty sticker and rubber foot (2:28). Be careful when removing the rubber foot, as it breaks very easily. Mine broke, but fortunately I was able to put it back in place without too much trouble once I had finished the repairs.
3. Remove torx head screw (3:00).
4. Remove screws with arrows pointing at them (3:30). There are nine screws that need to removed in this step, and the location of the screws can be seen in one of the pictures above.
5. Remove memory card reader cable (3:53).
6. Blu-ray drive connector (4:14).
7. Remove ribbon cable (4:23).
8. Remove screw (4:43).
9. Remove four screws (4:58).
10. Remove ribbon cable (5:23).
11. Remove ribbon cable (5:31).
12. Connector (5:46).
13. Remove six screws (6:01). One screw has a washer on it. The location of the screws can be seen in one of the pictures above.

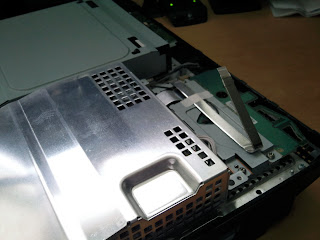

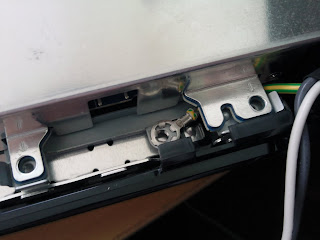

14. Remove power supply (6:20).
15. Remove the cable for the switch for the power/eject buttons (6:32).
16. Remove four screws (6:42) and remove the power switch.

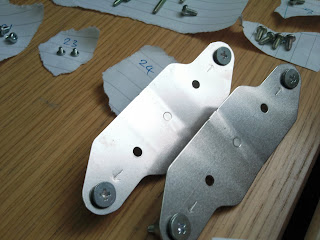

17/18. Remove eight screws which have arrows pointing at them (6:58). The location of the screws can be seen in one of the pictures above, as well as the sizes of the screws.
19. Remove the plastic tabs (7:58). There are three on the bottom, and two on the top.
20. Remove the fan connector (8:35).
21. Remove three screws (8:40).
22. Disconnect the battery (9:20).
23. Remove two screws for the hard drive bay (9:33).
-End of first video-
24. Remove four screws (0:05).
25. Wipe off the old thermal compound from the heat sink with white spirit (0:36).
26. Separation (1:02).
27. Tabs (1:10).
28. Separation (1:34).
29. Clean off old thermal compound from the CPU and GPU using white spirit (1:50). Carefully use a compass to remove any thermal compound that drops onto the motherboard.
30. You will be heating the CPU and GPU for around 2-3 minutes. Heat both sides of the motherboard (3:02).
31. Start the reflow process and make sure you do not move the motherboard (3:42). Concentrate the heat on the CPU and GPU.
32. Slowly cool the board down (6:02).
33. Don't touch the board, and leave it to cool down for 20 minutes (7:16).
34. Apply thermal compound (7:29). You want to spread the thermal compound evenly. You do not want to put too much or too little. Do not get the thermal compound on anything else apart from the CPU and GPU. If you do, wipe it off.
35. Put everything back together (8:34). To do this, just reverse all the steps starting from step 28. Connect the PS3 to the mains and a TV, and hope for the best!
The solder reflow process worked perfectly for me, and I immediately removed the game that was stuck in my PS3. I then copied all my save files from my PS3 to a flash drive, and also used the backup utility on the PS3 to backup everything to an external HDD.
